COMPLETED PROJECTS
AIR FORCE NAVAL HOUSING BOARD SILVER HEIGHTS DEHRADUN

Silver Heights Dehradoon   |   Farm Houses Palwal



INTRODUCTION
Air force Naval Housing Board Cater for the needs of serving and retired Air Force and Naval personnel and their widows through self financing housing schemes. The site of this project is located off the proposed Mussorie Bye Pass on an elevated plateau surrounded by a Reserved Sal forest.

SILVER HEIGHTS is an address where luxury and nature are in close harmony, a place far from the madding crowd. The location has the benefit of extensive green cover all around and is therefore free of dust, smoke and pollution to keep you in good health. It is approximately 5 km from the Indian Military Academy.

124 plots of a larger colony are being developed for Air Force and Naval personnel. Remaining plots are already owned by other members from the civil fraternity. AFNHB allottees will have to become part of the existing society and maintenance of the entire complex shall be looked after by residents of entire colony.

The surrounding area boasts of good educational, health and recreational facilities like Law College, Fun and Food Kingdom and other professional institutions in addition to the facilities being provided by the IMA to the members of the forces.

The site has been exploited architecturally to its fullest extent to achieve the maximum aesthetic output and to provide with other basic amenities.

The open spaces (Parks) will provide enough breathing space and useful for many other leisure activities. A few shops catering to the daily needs of the residents have been provided. A health club is also being planned within the complex.


RESIDENTIAL UNITS

Accommodation has been designed as a Duplex house in a plot area of approximately 150 sq.mt (180 sq.yd.) which has been developed on a Row Housing Concept in which the said accommodation is abutting its adjoining is abutting its adjoining unit on both sides while the front and rear side remains open for admitting the desired light and ventilation into the bahitable areas of the unit.



The design of the unit has been made keeping in view the flexibility of making it into an expandable home in two floors. The accommodation comprises of Drawing, Dining, 3 Bedrooms and two Toilets, Kitchen, Stairs, Verandah and Porch. This has been so evolved that it gets Drawing/Dining and one bedroom, kitchen, toilet, porch and verandah on ground floor and the two bedrooms and a toilet on first Floor with terraces. The entire accommodation has been well designed with its proportioned features of windows and other elements of the facade. These units have been positioned to offer an all round views.

The individual house will be provided with a septic tank and soak pit. Water supply shall be made from the central RCC over head Tank of appropriate capacity with individual over head tank on each unit.

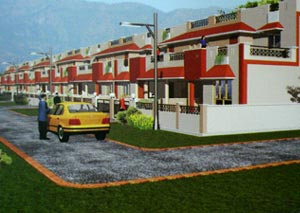

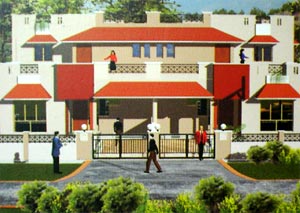

Site View

Interiors

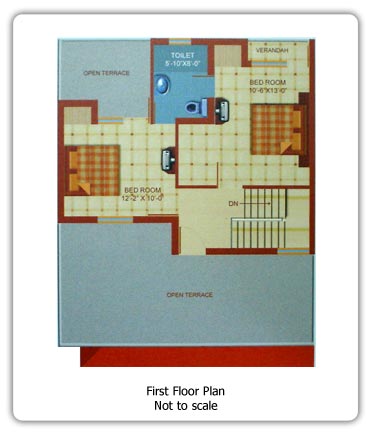

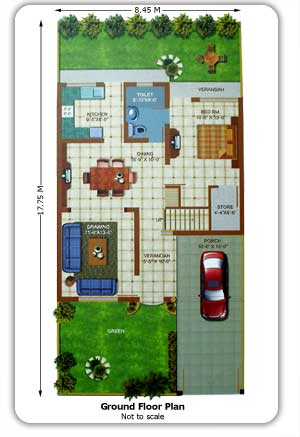

PLANS

SPECIFICATIONS
STRUCTURE

-

Load bearing structure of brick masonary designed incorporating latest provisions of relevant ISI codes for earthquake resistant structure. External finish is cement based paint, Structural design has been approved by the Indian Institute of Technology 'Roorkee'.

FLOORING -

The flooring is of Vitrified Tiles in drawing cum dining and ceramic tiles in all Bedrooms and Kitchen. The Porch has cement concrete tiles.

DOORS & WINDOWS - All doors and windows have wooden frames. Windows and Ventilators are glazed. Windows are provided with MS Grills. Doors are flush doors.
KITCHEN - Granite finish Broda green counter with glazed tiles above the counter. Stainless Steel Sink has been provided along with CP brass fittings.
TOILET - Glazed Tiles on walls, white vitreous china ware fixtures. PVC cistern along with CP brass fittings.
INTERNAL FINISH - All internal walls are plastered and oil bound distempered. Wood work and steel work is enamel paint.
ELECTRICALS - All concealed copper wiring, switches, distribution boards and MCB'S are provided.
OVER HEAD TANK - Over head PVC Water Tanks are on the Terrace.
